Architecture Overview

The Advance Chunk File Upload API is built on a set of modern architectural patterns designed to ensure scalability, maintainability, and a clear separation of concerns. This document describes the high-level architecture of the system.

Core Architectural Patterns

The system's design is guided by the following principles:

  • Client-Server Architecture: The system is split into two main parts: a server-side API that handles all the core logic, and a client-side SDK that simplifies integration for developers.
  • Layered Architecture: The server application is organized into four distinct layers, each with a specific responsibility. This enforces a strict separation of concerns.
  • Domain-Driven Design (DDD): The core business logic is modeled within a rich Domain layer, which is completely independent of infrastructure concerns like databases or APIs. The FileUploadSession is the central "Aggregate Root" that enforces all business rules for an upload.
  • Event-Driven Architecture (EDA): The system uses events to communicate between different parts of the application in a decoupled manner. This is used for both internal workflows (e.g., notifying the system to merge chunks) and external integrations via RabbitMQ.
  • Mediator Pattern: In-process communication between components is managed by the Mediator pattern (using the MediatR library), which reduces direct dependencies and keeps the application logic clean.

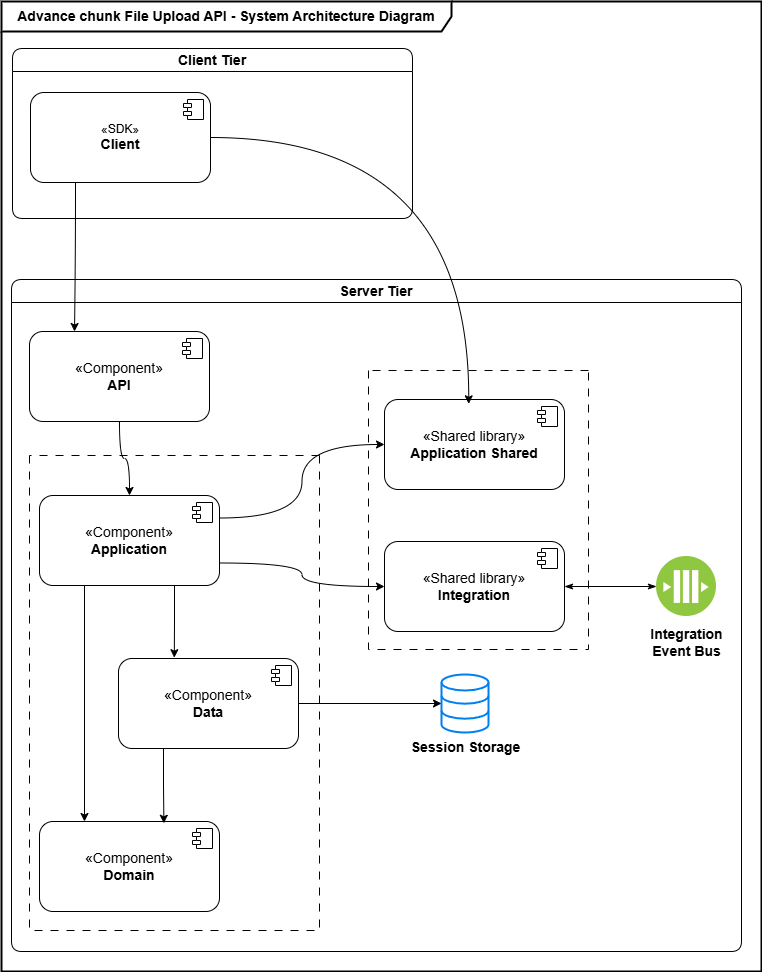

System Components

Client Tier

  • Client SDK (AdvanceFileUpload.Client): A .NET library (distributed as a NuGet package) that abstracts the entire upload process. It handles session creation, file chunking, parallel chunk uploads, and automatic retries for failed requests using the Polly library. Developers interact with a simple IFileUploadService interface.

Server Tier

The server is composed of several logical layers, typically organized as separate projects within the solution.

  1. API Layer (AdvanceFileUpload.API):
    • This is the entry point for all external communication.
    • It exposes RESTful HTTP endpoints for actions like creating sessions, uploading chunks, and canceling uploads.
    • It handles cross-cutting concerns like authentication (API Key validation), rate limiting, and global exception handling.
    • It hosts a SignalR hub for real-time progress notifications.
  2. Application Layer (AdvanceFileUpload.Application):
    • This layer orchestrates the business workflows or "use cases."
    • It contains services like UploadManager that receive requests from the API layer.
    • It does not contain business logic itself but directs the Domain layer entities to perform actions and coordinates with the Data layer to persist results.
    • It contains handlers for domain events.
  3. Domain Layer (AdvanceFileUpload.Domain):
    • The heart of the system. It contains all the business logic, rules, and state.
    • Key entities include FileUploadSession and ChunkFile.
    • It is completely isolated from infrastructure. It has no dependencies on databases, file systems, or network protocols.
    • It raises domain events (e.g., ChunkUploadedEvent, FileUploadSessionCompletedEvent) to signal state changes.
  4. Data Layer (AdvanceFileUpload.Data):
    • This layer is responsible for all data persistence.
    • It implements the IRepository<T> interface defined in the Domain layer.
    • It uses Entity Framework Core to communicate with the SQL Server database, mapping domain entities to database tables.
    • This layer isolates the rest of the application from the specific database technology being used.
